Balcony Power Station Universal Holder Solar Module

Suitable for vertical or horizontal mounting
Vertical tilt angle adjustable from 87° to 30°
Max. plate size: approx. 172.2 x 113.4 cm
Max. plate weight: approx. 20.8 kg
Max. installation height: approx. 20 m
Material, screws and nuts: stainless steel
Material, fastening hook: stainless steel
Material, terminal block: galvanized steel Q235
Material, telescopic rods inside/outside: galvanized steel Q235
Scope：
Yard Force balcony power station universal mount solar module

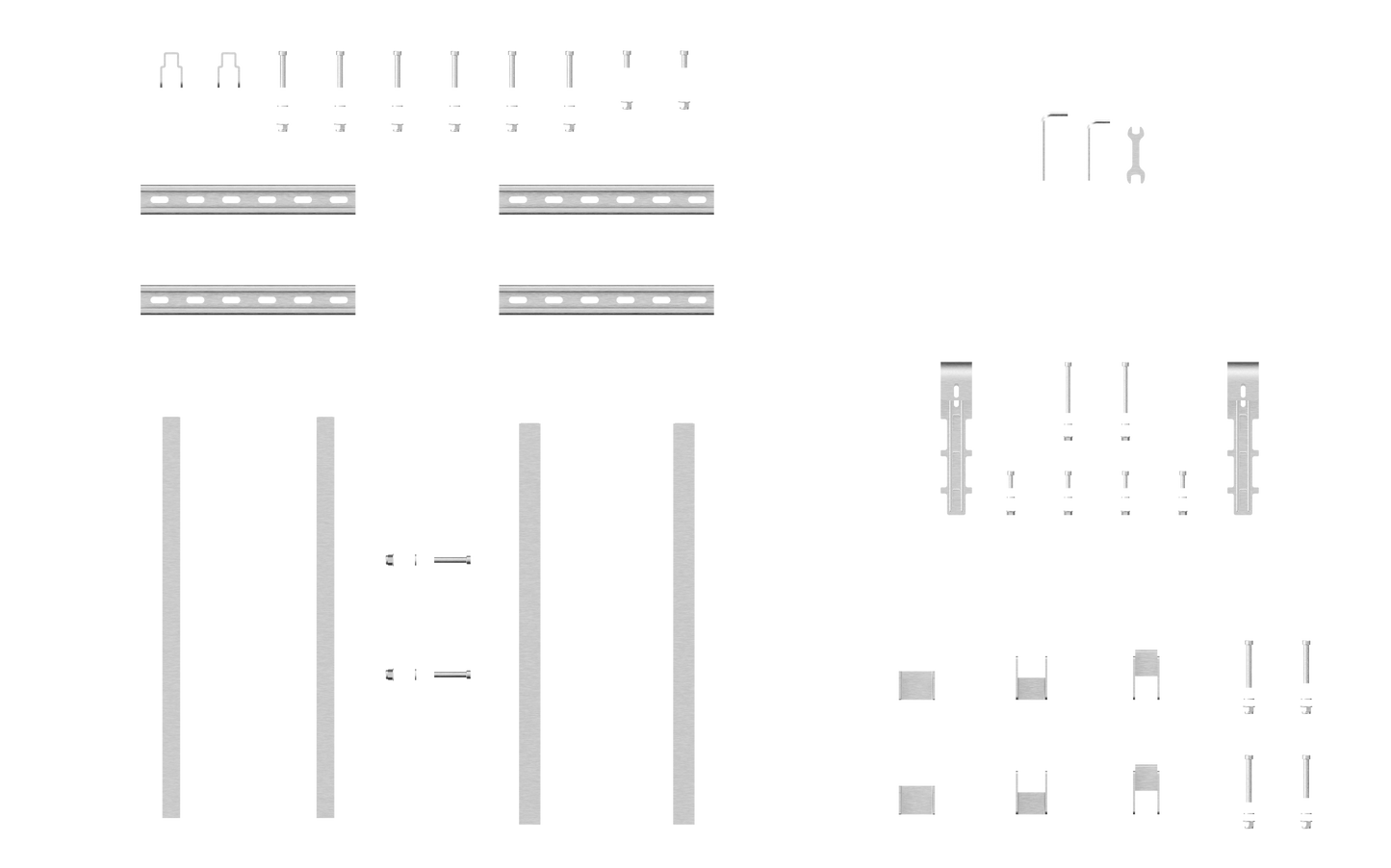

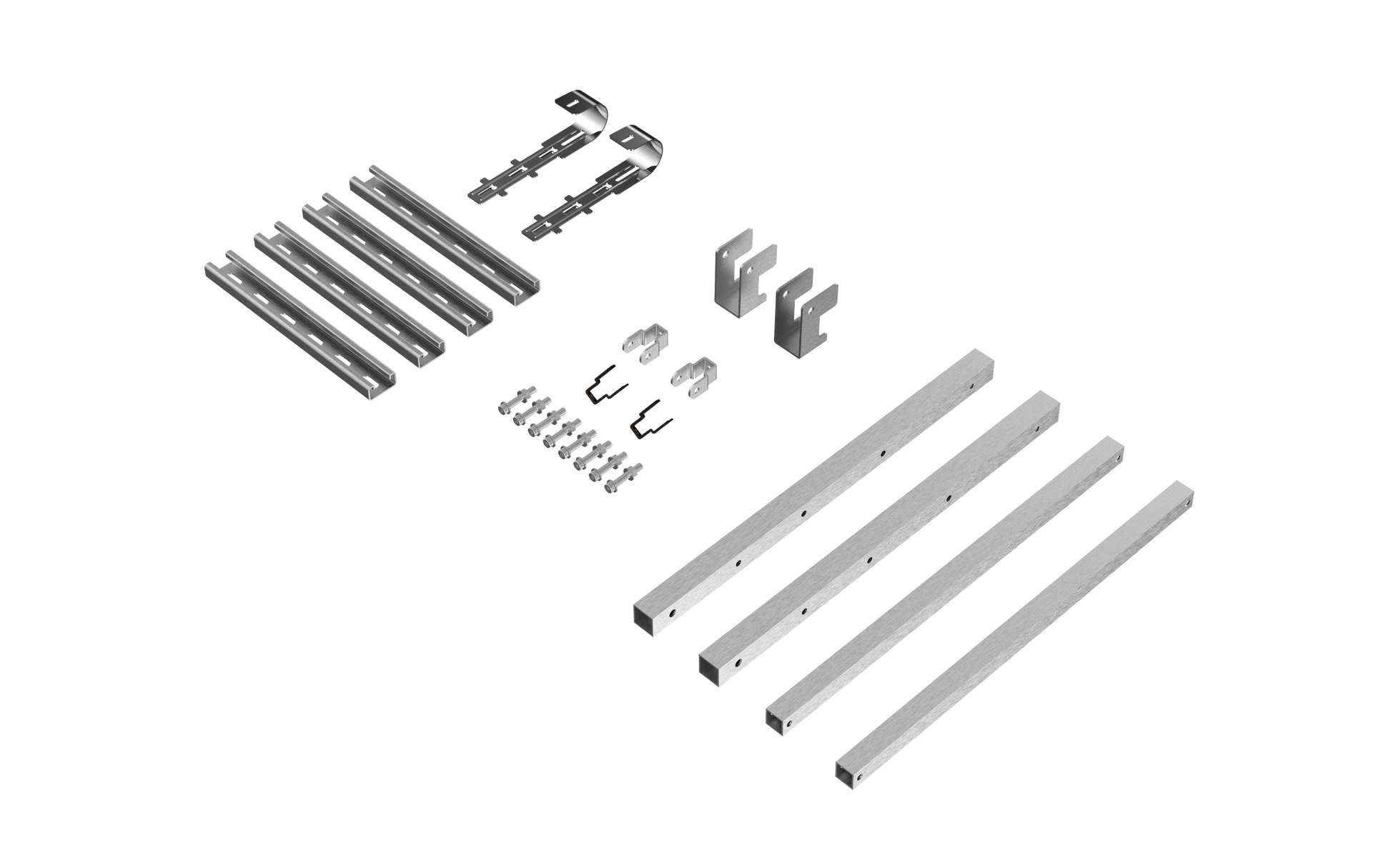

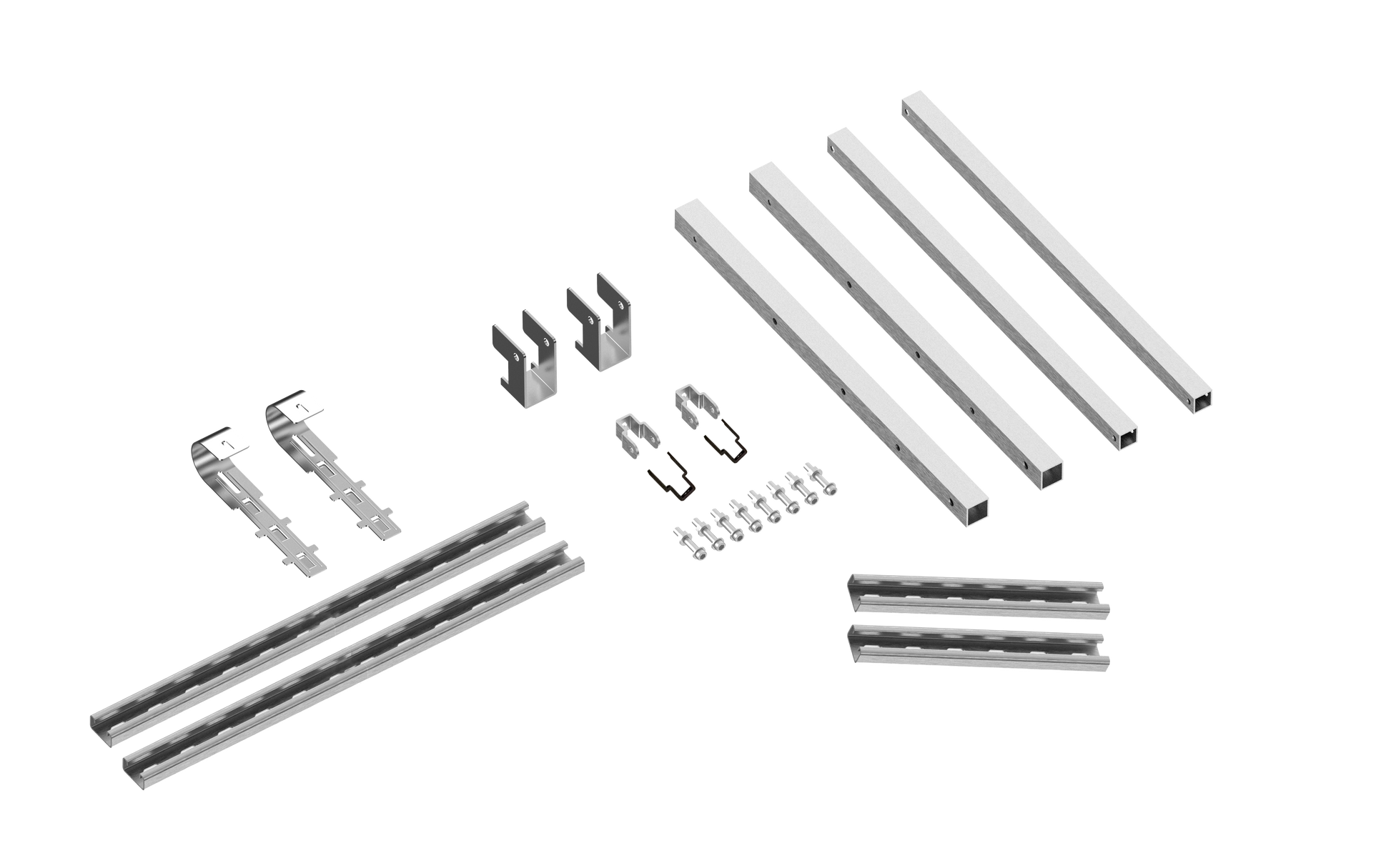

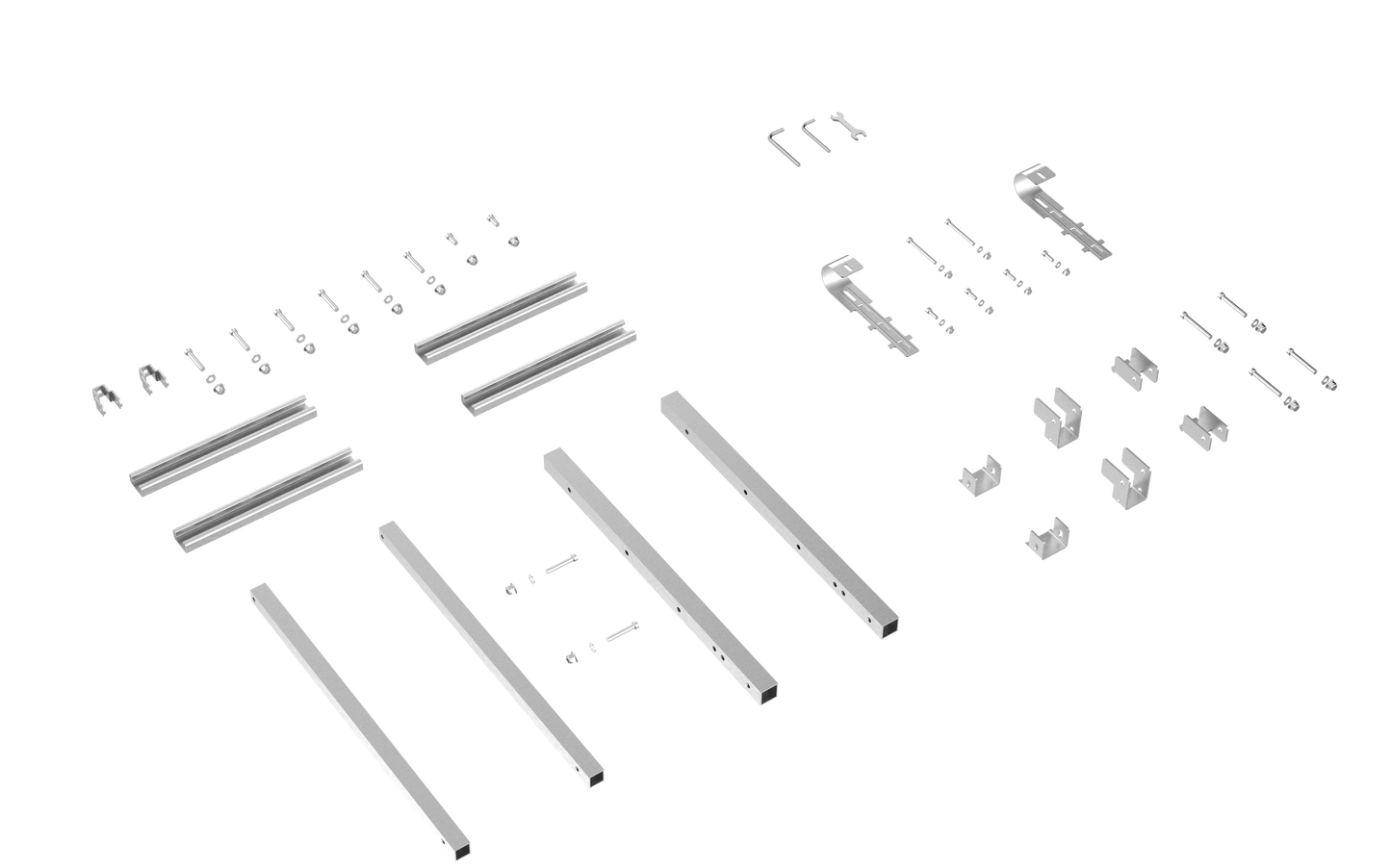

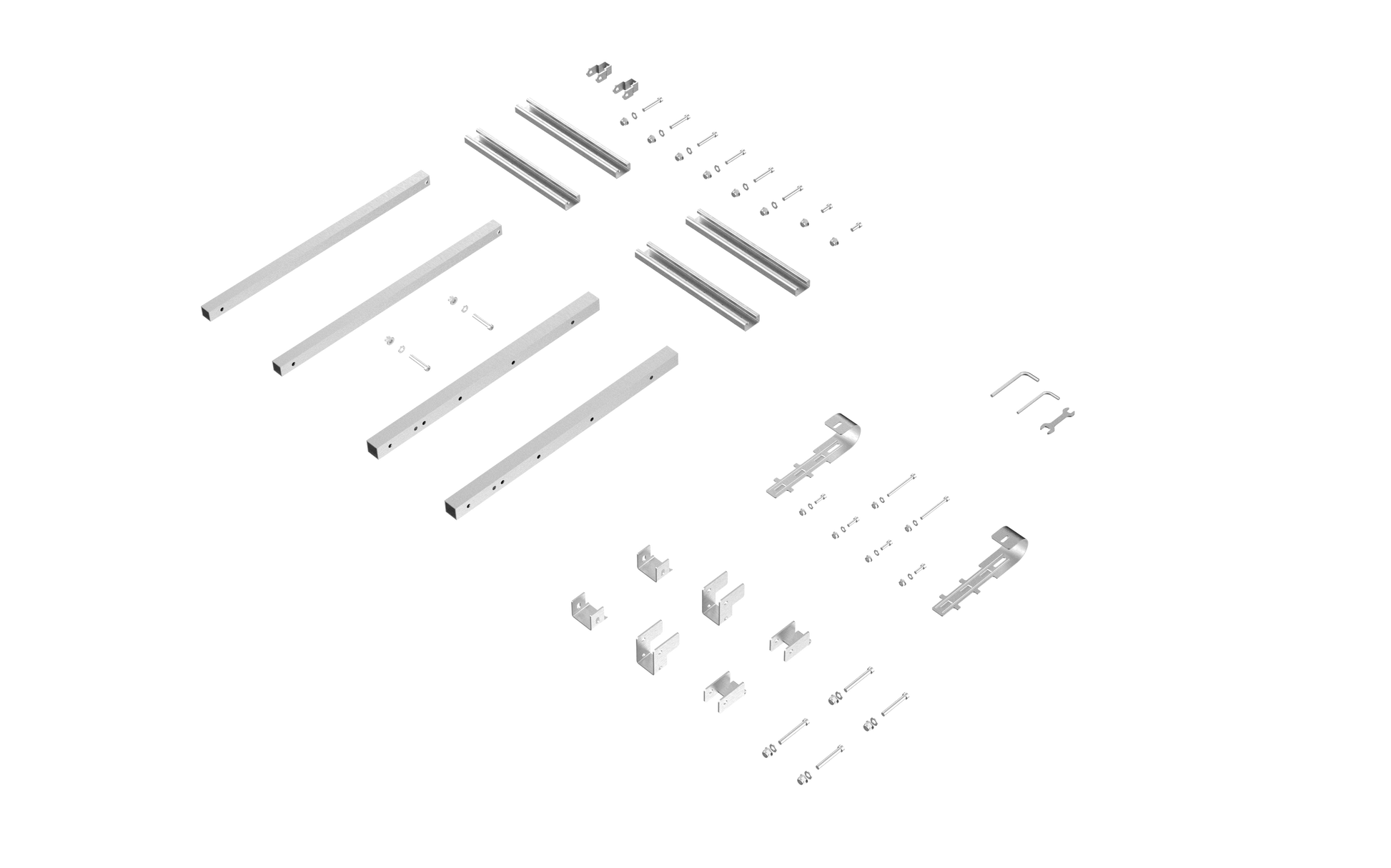

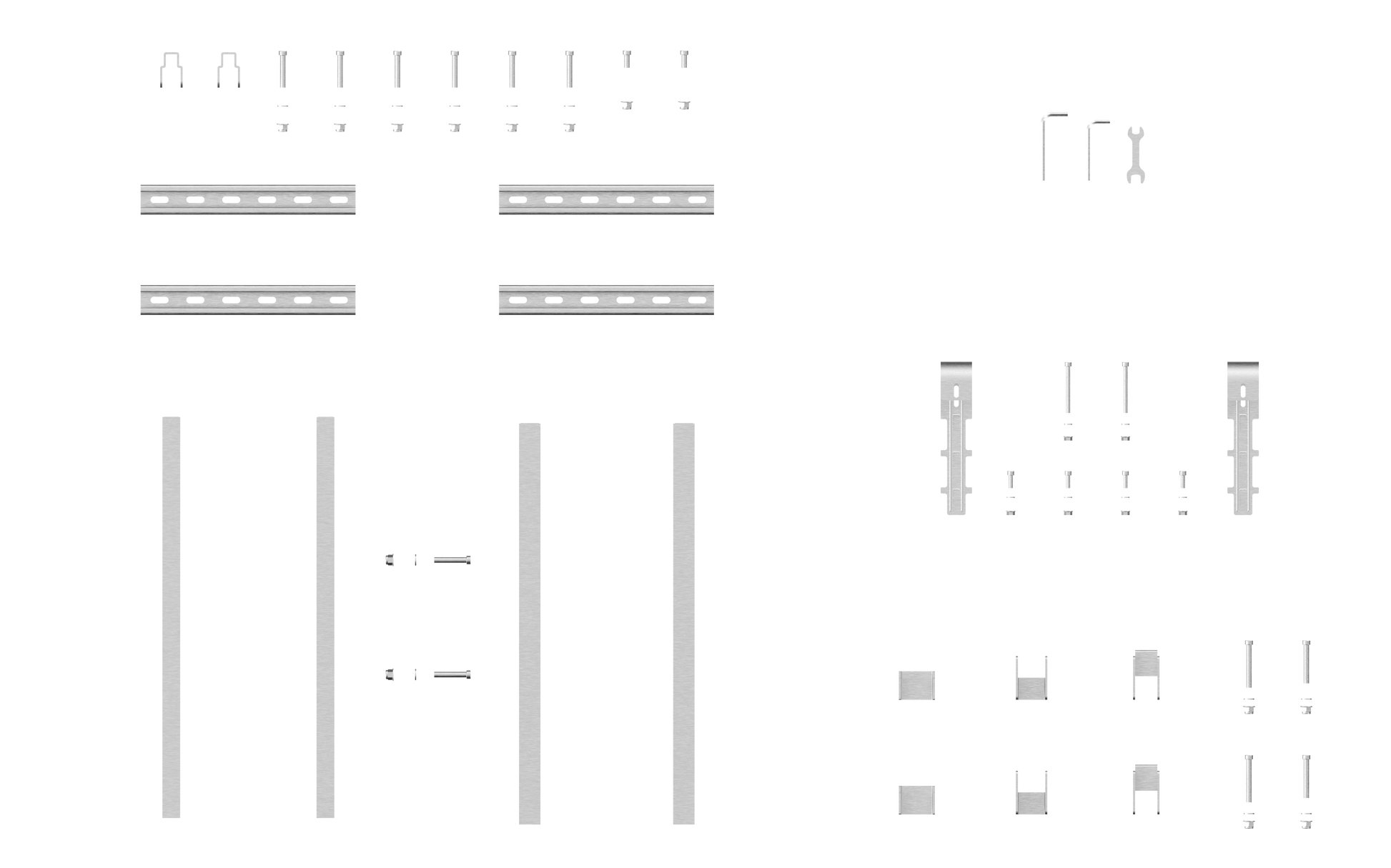

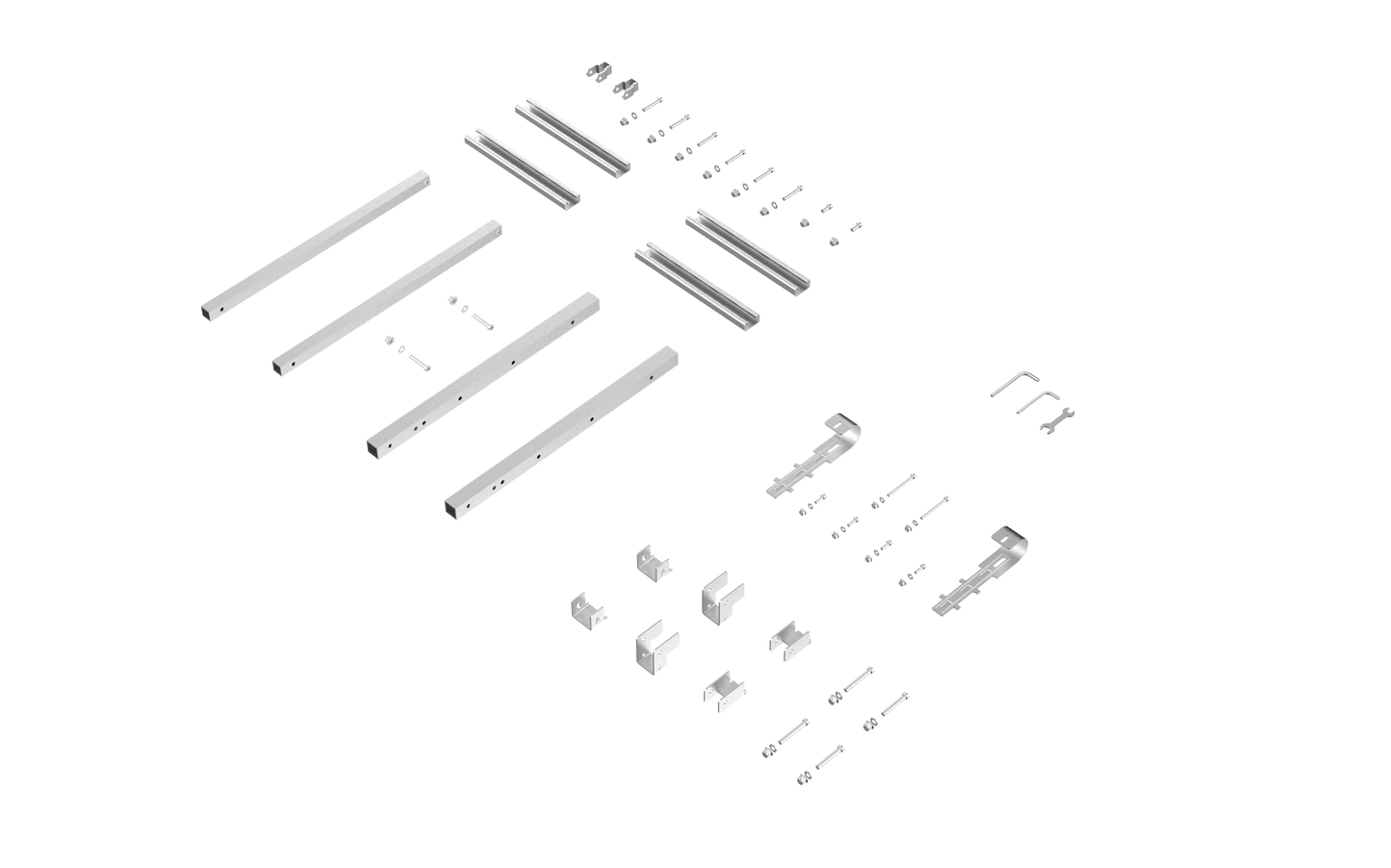

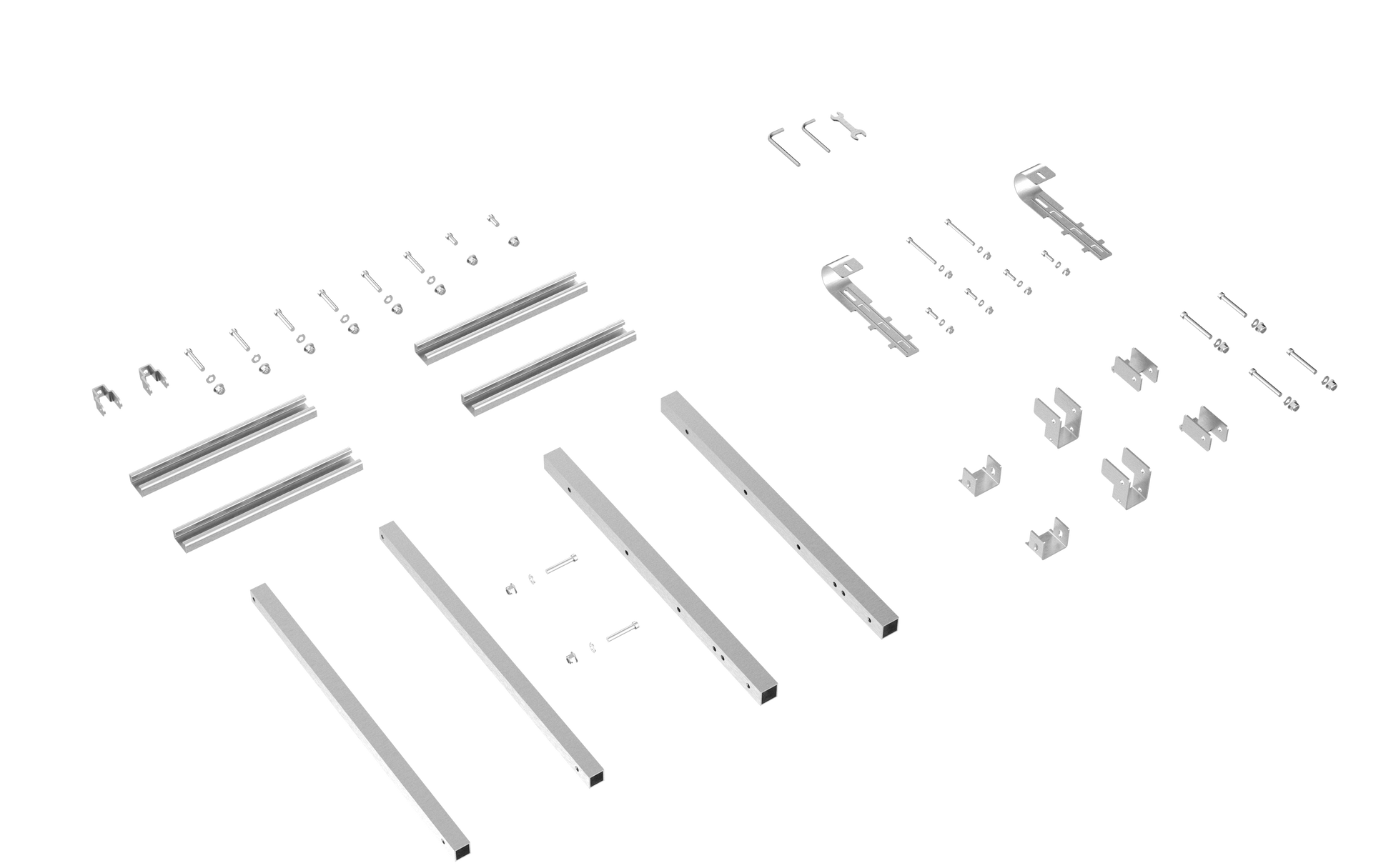

Mounting material
2 x mounting hooks
2 x telescopic poles (outside)
2 x telescopic poles (inside)
2 x anchor angles
2 x hinges (panel)
2 x hinges (balcony)
2 x mounting plates
4 x clamping rails
2 x M8 x 65 mm screws, nuts, washers
2 x M8 x 60 mm screws, nuts, washer
2 x M8 x 45 mm screws, nuts, washer
2 x M8 x 20 mm screws, nuts
2 x M6 x 65 mm screws, nuts, washer
4 x M6 x 18 mm screws, nuts, washer
1 x hexagon key SW 5
1 x hexagon key SW 6
1 x wrench SW 10/SW 13  

Vertical tilt angle adjustable from 87° to 30°
